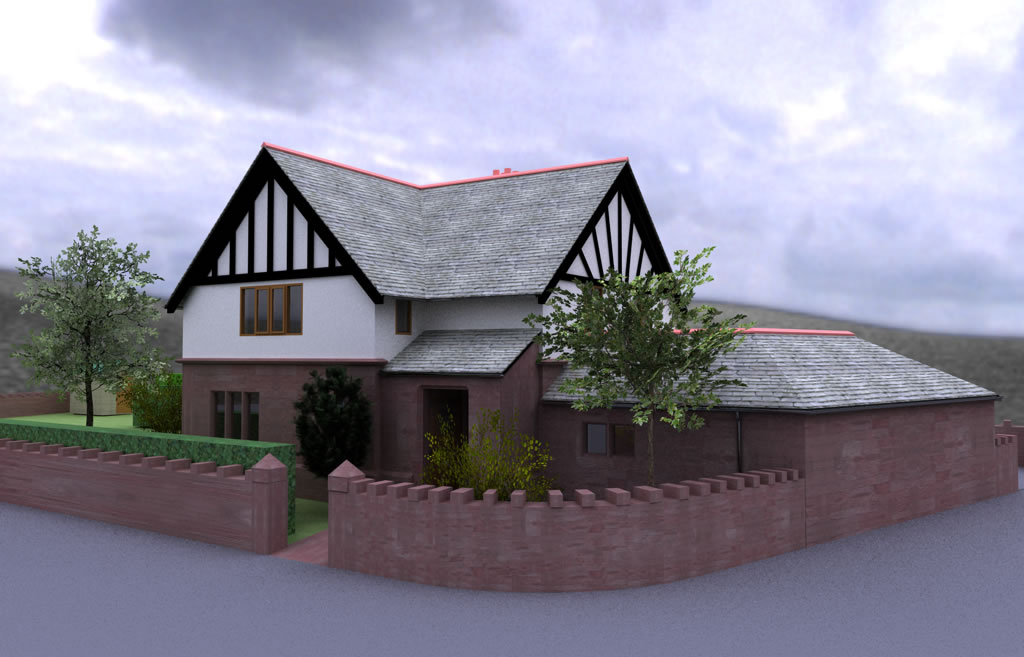

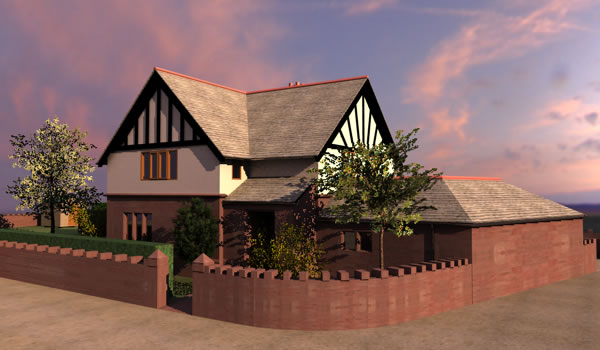

	<< click for larger version	Currently in design... House Extension West Cumbrian coast

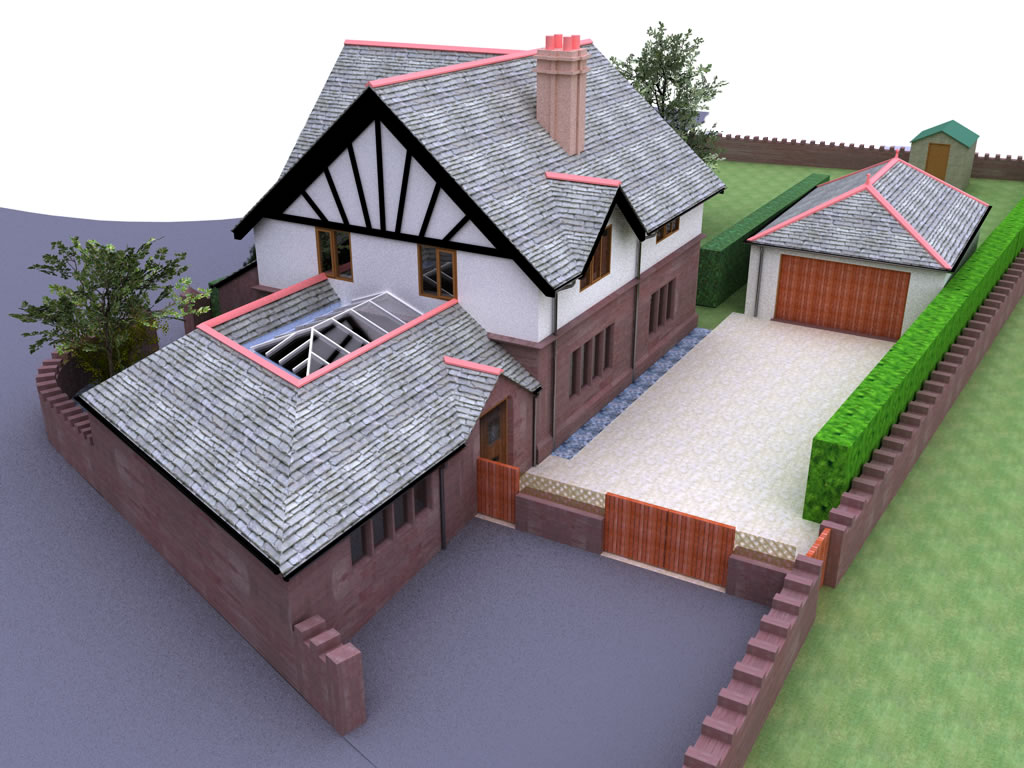

Proposed aerial view to explain roofscape...
		Shows the single storey extension with a concealed rooflight << click for larger version (156 KB)

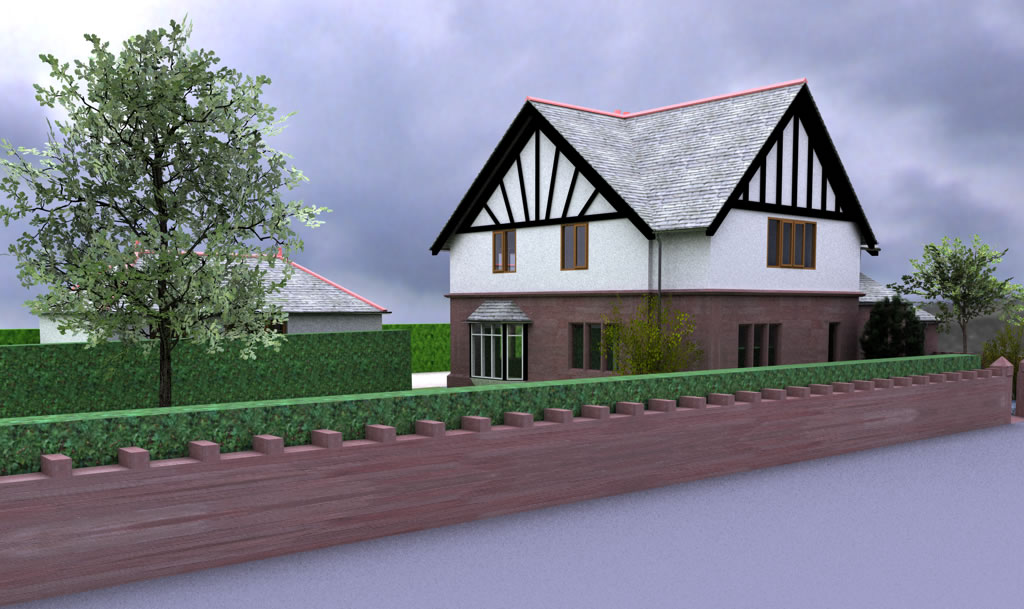

Proposed view from main road of garage across garden...
		A new garage is screened by an existing hedge << click for larger version (129 KB)

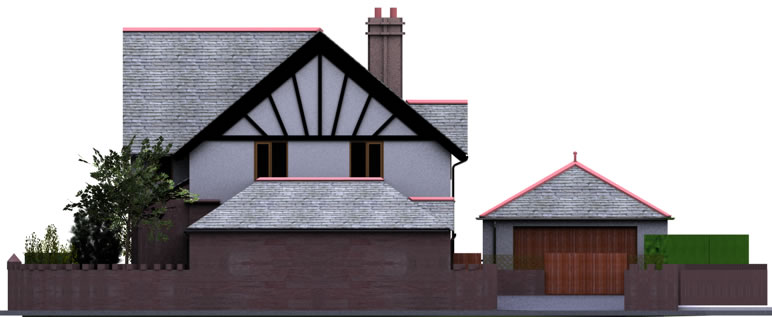

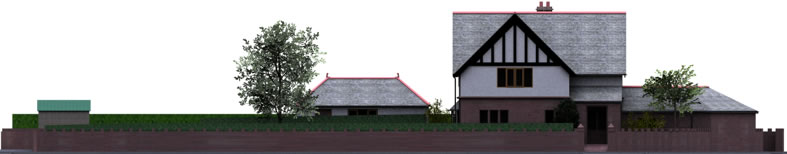

Proposed Elevations to side road and main road...
		I tried some rendered elevations in Cinema 4D as it conveyed the slope of the garage roof rather better than the simple 2D elevation which made the garage appear very high
