Screenshot of existing model in Allplan FT






Grasmere


Shop
Extension



Interesting project - the client wanted more than just a simple extension to his shop premises - something that would catch the eye while still being traditional..
Roof structure explained......

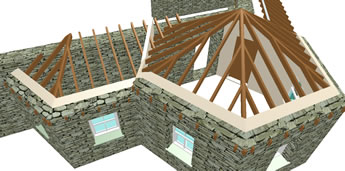

View of basic roof structure

A really tricky roof on this one - modelling the roof structure was a big help in understanding how it might be built - or indeed if it would work at all!
:-)

Street view and Rear view......


Proposed new front and extension

  Proposed rear view
The long folding door has been a feature of this shop for many years.
