porch rendering in C4D







<< click for larger image

Coniston
new house
(click for larger image)
August 2003 - eyebrow almost finished - click for larger image (136Kb)

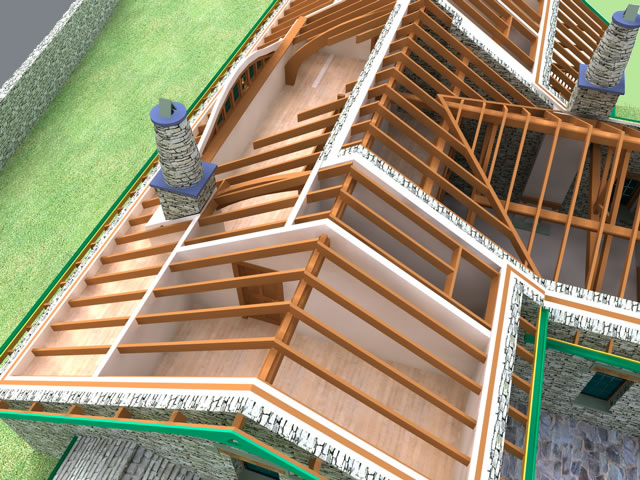

...roof construction model...

Model with revisions current at October 2002

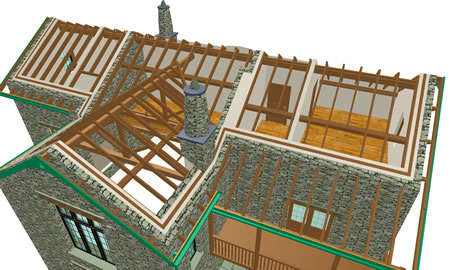

...roof construction model...

Model with revisions current at October 2002

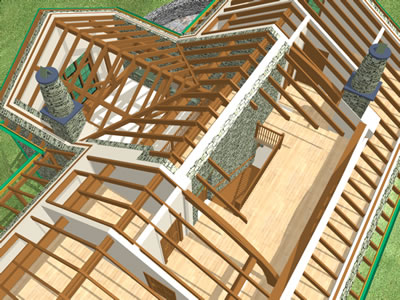

...roof construction model...



Real ........ and Allplan model purlin ends!


Design views straight off the CAD monitor - no rendering

into the hall
into the hallway

   up the stairs upstairs to the top landing
note no ceilings, light fittings etc. yet...
turn right into the gallery
turn right into the gallery

looking back up at the gallery
looking back up at the gallery
Allplan in action...animated sections ...
cut-away showing gallery





cut-away showing hall and stairs
some amendments including an eyebrow dormer ...
Allplan makes even complex roofshapes quite simple...
view of the eyebrow dormer which replaced the regular dormer



another view of the eyebrow dormer which replaced the regular dormer
the eyebrow dormer from the stair and upper floor landing...
arriving at the top of the stairs - eyebrow dormer to the left



turning onto landing from stairhead - eyebrow dormer window on right
the 3D model will be updated once elevations agreed...
end elevation
entrance elevation





part of entrance elevation
...just 'playing about' with textures...





...foundation modelling...
animation view of foundations with transparent landscape for clarity





foundations in 3D animation view
    modelling the foundations - areas of stone facing which will be covered tend to be built in blockwork
