Existing entrance


New porch to old lakeland stone cottage

...existing entrance

Nice cottage this... just needs a porch to shelter the entrance from the inevitable rain...
First sketch proposals......

entrance porch first scheme view
A hipped roof with a small lead 'flat' on top because of the window cill...


...perspective of scheme 1 (left)

front elevation of scheme 1 (right)..
entrance porch first scheme front elevation

Revised proposals...

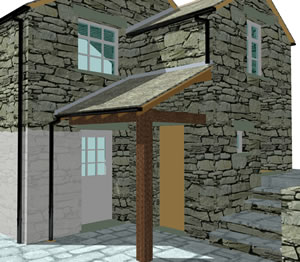

scheme 2 illustration
a second attempt - single pitch with the plan pulled in slightly to keep the lead flashing under the window cill on the left...

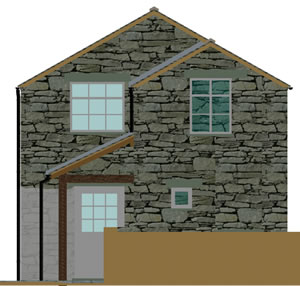

scheme 2 elevation
... scheme 2 front elevation

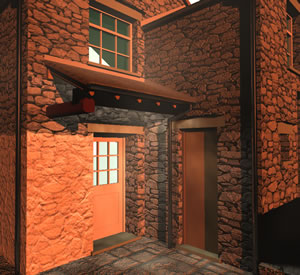

More Revised proposals ... early morning winter sunshine

Larger images (190kb) and render notes

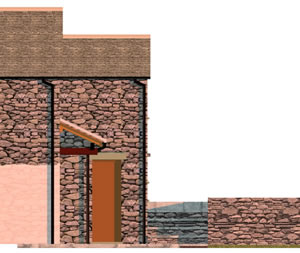

scheme 2 illustration... scheme 3 side elevation
